Delta

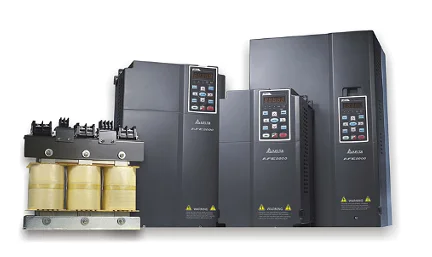

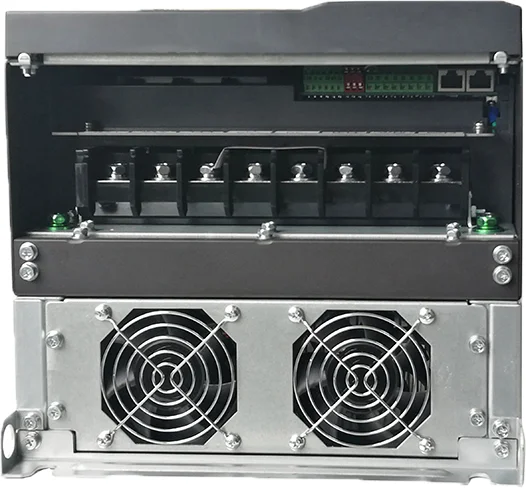

3phase 220v 22kw 30hp output ac variable frequency drive delta ac motor drive vector control with open loop vfd VFD220C23A

Product description: 3phase 220v 22kw 30hp output ac variable frequency drive delta ac motor drive vector control with open loop vfd VFD220C23A
INQUIRY

feature

	>>>Speed / torque / position control mode.
	>>>Coated circuit boards.
	>>>For both synchronous asynchronous motors.
	>>>International safety standard (CE/UL/cUL).
	>>>Supports various network protocols: CANopen,DeviceNet,EtherNet/IP, MODBUS TCP (RS485,RS232).
>>>Hot pluggable LCD keypad built in language:English,Traditional Chinese,Simplified Chinese,Türkçe,Russian,Español,Português,français.

3phase 220v 22kw 30hp output ac variable frequency drive delta ac motor drive vector control with open loop vfd VFD220C23A

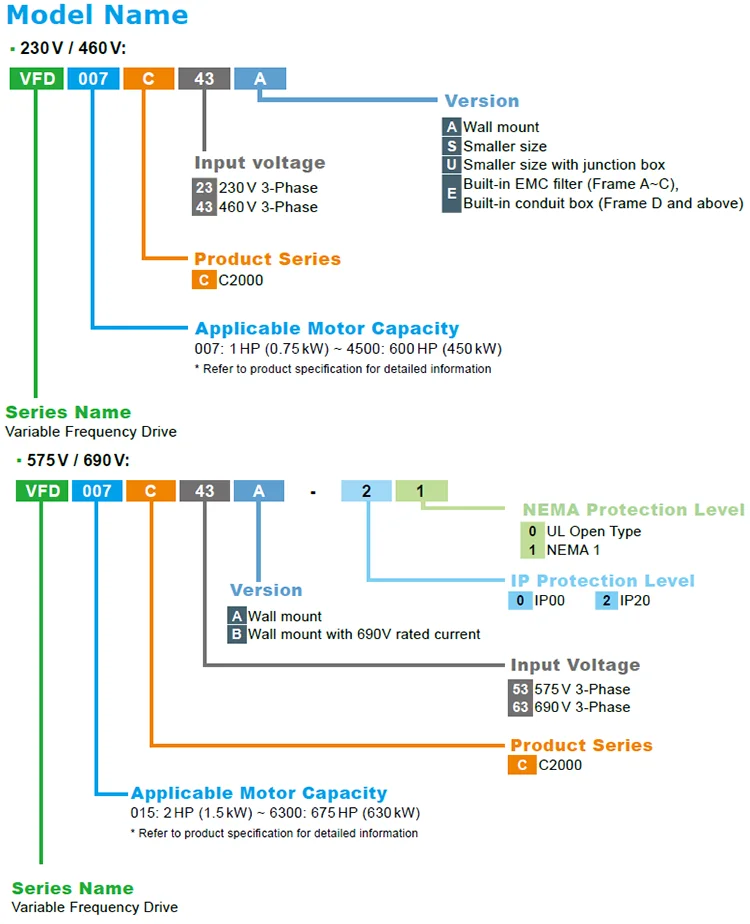

230V/460V Data

230v
Frame Size			A				B			C
Model VFD- xxxCxxx			007	015	022	037	055	075	110	150
Output Rating	NORMAL DUTY	Rated Output Capacity (kVA)	2.0	3.2	4.4	6.8	10	13	20	26
		Rated Output Current (A)	5	8	11	17	25	33	49	65
		Applicable Motor Output (kW)	0.75	1.5	2.2	3.7	5.5	7.5	11	15
		Applicable Motor Output (HP)	1	2	3	5	7.5	10	15	20
		Overload Capacity	120% of rated current: 1 minute for every 5 minutes; 160% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00~599.00
		Carrier Frequency (kHz)	2~15
	HEAVY DUTY	Rated Output Capacity (kVA)	1.9	2.8	4.0	6.4	9.6	12	19	25
		Rated Output Current (A)	4.8	7.1	10	16	24	31	47	62
		Applicable Motor Output (kW)	0.4	0.75	1.5	2.2	3.7	5.5	7.5	11
		Applicable Motor Output (HP)	0.5	1	2	3	5	7.5	10	15
		Overload Capacity	150% of rated current: 1 minute for every 5 minutes; 180% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00~300.00
		Carrier Frequency (kHz)	2 ~ 6
Input Rating	Rated Voltage / Frequency		3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz
	Operating Voltage Range		170 ~ 264Vac
	Frequency Tolerance		47 ~ 63 Hz
Drive Weight (Kg)			2.6 ± 0.3				5.4 ± 1			9.8 ± 1.5

230v
Frame Size			C		D		E			F
Model VFD- xxxCxxx			185	220	300	370	450	550	750	900
Output Rating	NORMAL DUTY	Rated Output Capacity (kVA)	30	36	48	58	72	86	102	138
		Rated Output Current (A)	75	90	120	146	180	215	255	346
		Applicable Motor Output (kW)	18.5	22	30	37	45	55	75	90
		Applicable Motor Output (HP)	25	30	40	50	60	75	110	120
		Overload Capacity	120% of rated current: 1 minute for every 5 minutes; 160% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00 ~ 599.00
		Carrier Frequency (kHz)	2 ~ 15
	HEAVY DUTY	Rated Output Capacity (kVA)	28	34	45	55	68	81	96	131
		Rated Output Current (A)	71	86	114	139	171	204	242	329
		Applicable Motor Output (kW)	15	19	22	30	37	45	55	75
		Applicable Motor Output (HP)	20	25	30	40	50	60	75	100
		Overload Capacity	150% of rated current: 1 minute for every 5 minutes; 180% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00~300
		Carrier Frequency (kHz)	2 ~ 6
Input Rating	Rated Voltage / Frequency		3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz
	Operating Voltage Range		170 ~ 264Vac
	Frequency Tolerance		47 ~ 63 Hz
Drive Weight (Kg)			9.8 ± 1.5		38.5 ± 1.5		64.8 ± 1.5			86.5± 1.5

460v
Frame Size			A					B			C			D0
Model VFD- xxxCxxx			007	015	022	037	055	075	110	150	185	220	300	370	450
Output Rating	NORMAL DUTY	Rated Output Capacity (kVA)	2.4	3.2	4.8	7.2	10	14	19	25	30	36	48	58	73
		Rated Output Current (A)	3.0	4.0	6.0	9.0	12	18	24	32	38	45	60	73	91
		Applicable Motor Output (kW)	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45
		Applicable Motor Output (HP)	1	2	3	5	7.5	10	15	20	25	30	40	50	60
		Overload Capacity	120% of rated current: 1 minute for every 5 minutes; 160% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00~599.00
		Carrier Frequency (kHz)	2~15
	HEAVY DUTY	Rated Output Capacity (kVA)	2.3	3.0	4.5	6.5	9.6	14	18	24	29	34	45	55	69
		Rated Output Current (A)	2.9	3.8	5.7	8.1	11	17	23	30	36	43	57	69	86
		Applicable Motor Output (kW)	0.4	0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37
		Applicable Motor Output (HP)	0.5	1	2	3	5	7.5	10	15	20	25	30	40	53
		Overload Capacity	150% of rated current: 1 minute for every 5 minutes; 180% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00~300.00
		Carrier Frequency (kHz)	2 ~ 6
Input Rating	Rated Voltage / Frequency		3-phase AC 380 V ~ 480 V ( -15% ~ +10%), 50 / 60 Hz
	Operating Voltage Range		323 ~ 528 VAC
	Frequency Tolerance		47 ~ 63 Hz
Drive Weight (Kg)			2.6 ± 0.3					5.4 ± 1			9.8 ± 1.5			27 ± 1.5

460v
Frame Size			D		E		F		G		H
Model VFD- xxxCxxx			550	750	900	1100	1320	1600	1850	2200	2800	3150	3550	4500
Output Rating	NORMAL DUTY	Rated Output Capacity (kVA)	88	120	143	175	207	247	295	367	438	491	544	720
		Rated Output Current (A)	110	150	180	220	260	310	370	460	550	616	683	866
		Applicable Motor Output (kW)	55	75	90	110	132	160	185	220	280	315	355	450
		Applicable Motor Output (HP)	75	100	125	150	175	215	250	300	375	420	475	600
		Overload Capacity	120% of rated current: 1 minute for every 5 minutes; 160% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00~599.00
		Carrier Frequency (kHz)	2~15
	HEAVY DUTY	Rated Output Capacity (kVA)	84	114	136	167	197	235	280	348	417	466	517	677
		Rated Output Current (A)	105	143	171	209	247	295	352	437	523	585	649	815
		Applicable Motor Output (kW)	45	55	75	90	110	132	160	185	220	280	315	355
		Applicable Motor Output (HP)	60	75	100	125	150	175	215	250	300	375	425	475
		Overload Capacity	150% of rated current: 1 minute for every 5 minutes; 180% of rated current: 3 seconds for every 30 seconds
		Max. Output Frequency (Hz)	0.00~300.00
		Carrier Frequency (kHz)	2 ~ 6
Input Rating	Rated Voltage / Frequency		3-phase AC 380 V ~ 480 V ( -15% ~ +10%), 50 / 60 Hz
	Operating Voltage Range		323 ~ 528 VAC
	Frequency Tolerance		47 ~ 63 Hz
Drive Weight (Kg)			38.5 ± 1.5		64.8 ± 1.5		86.5 ± 1.5		134 ± 4		228

575v/690v Data

575v
Frame Size			A			B
Model VFD- xxxC53A-21			015	022	037	055	075	110	150
Output Rating	Light Duty	Rated Output Capacity (kVA)	3	4.3	6.7	9.9	12.1	18.7	24.1
		Rated Output Current (A)	3	4.3	6.7	9.9	12.1	18.7	24.2
		Applicable Motor Output (kW)	1.5	2.2	3.7	5.5	7.5	11	15
		Applicable Motor Output (HP)	2	3	5	7.5	10	15	20
	NORMAL DUTY	Rated Output Capacity (kVA)	2.5	3.6	5.5	8.2	10	PREVIOUS：16DI 24Vdc automation plc programmable logic NEXT：300A 1200V IGBT Switch CM300DY-24A Power IGBT RELATED PRODUCTS Brand new es2 series Delta PLC DVP20SX2 C 16DI 24Vdc automatio CATEGORIES Module's+ GSM.GPRS Module IGBT Module PLC controller Inverter HMI+ Siemens ABB Delta Mitsubishi Danfoss For Arduino+ Study kit For 3D Printer+ Relay / Relay Module+ 1 Channel 2 Channel 4 Channel 8 Channel 16 Channel ICs + Potentiometer+ Capacitor/Resistor+ Manufacturers + LED&LCD + Breadboard & Jump wire& Acrylic shell+ CUSTOMER LETTER Do you received our New Year new gifts already?2017-12-04 The Good reference from Urs Bosshard ( Switzerland)2017-12-04 CONTACT US Contact: Sales department Phone: Tel: (86)755-89706589 Email: info@jxchips.com Add: Blog D,Dapu industry zone,Dashiling road,Longdong village, Longgang,Shenzhen,China Share Call Menu Top CopyRight 2003 All Right Reserved JX ELECTRONICS Co.,LTD Sitemap Add: Blog D,Dapu industry zone,Dashiling road,Longdong village, Longgang,Shenzhen,China Tel: (86)755-89706589 Fax:
