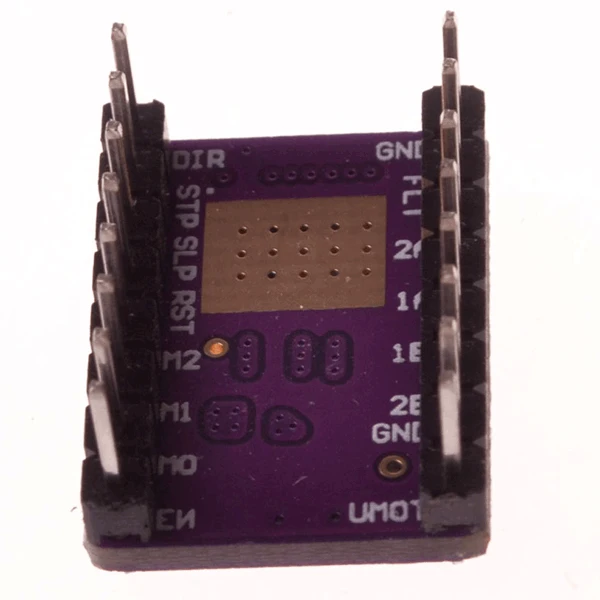

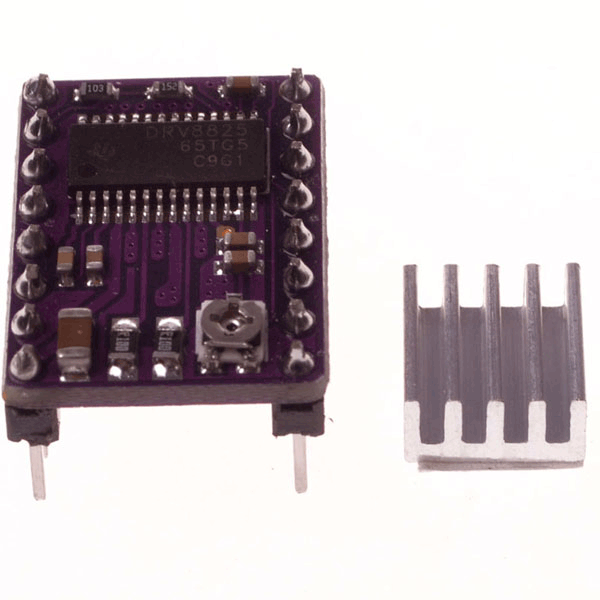

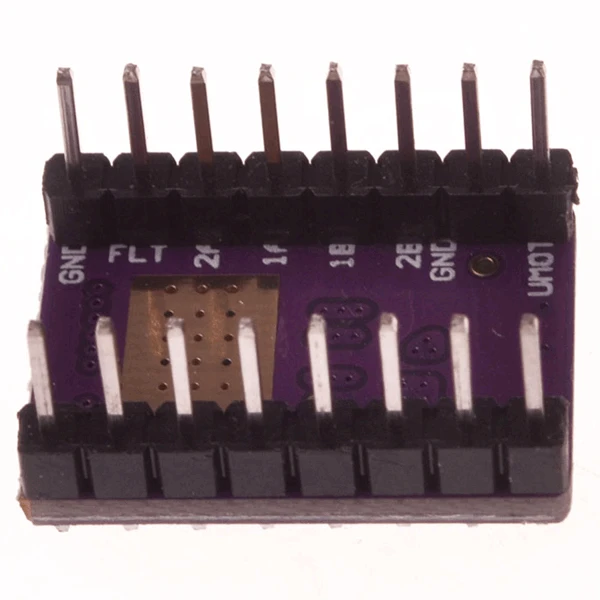

DRV8825 Stepper Motor Driver Module Purple with Heat Sink for 3D Printer 4-layer PCB

Specification:

•  Color: Purple
•  Size: 20mm*15mm*11mm

•  Weight:3.9g
•  Drive amps: 2.5A
•  Main chip: DRV8825

Features:

•  Suitable for driving below 8.2V ~ 45V 2.5A stepper motor
•  Full, half, 1/4, 1/8, 1/16,and 1/32, six step modes
•  Adjustable potentiometer can adjust the maximum output current
•  Automatic current decay mode detection
•  Thermal shutdown circuitry,
•  Undervoltage lockout,
•  Cross current protection.
•  Ground short-circuit protection
•  Load short-circuit protection.

Where better than A4988:

•  Largest amps 2.5A
•  Support 32 resolutions
•  4-layer PCB, decrease chip resistance, improve heat dissipation

Package Included:

•  1 X DRV8825 Stepper Motor Driver Module Purple with Heat Sink for 3D Printer 4-layer PCB
